Background line 4 PXE Diskless iSCSI Boot - Client Configuration on Windows Server 2003 Background line 5

When you want to use PXE diskless boot on Windows 2003 Server, you should use SANDeploy iSCSI Boot Configuration Wizard to configure your client computer so that it suitable for diskless boot.

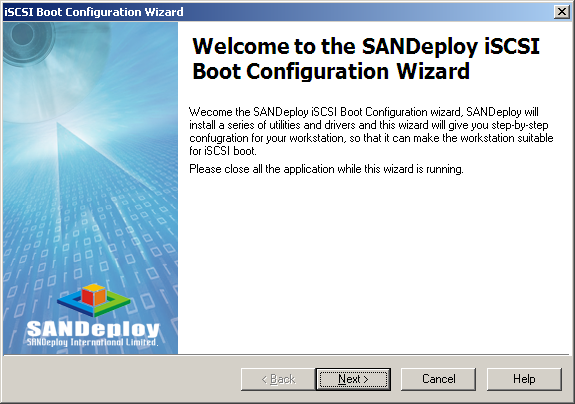

Double click on the Config Wizard icon in the SANDeploy Boot Server's client package, the iSCSI Boot Configuration Wizard shows.

SANDeploy iSCSI SAN iSCSI Boot Target Client Configuration 1

Press the Next button to continue.

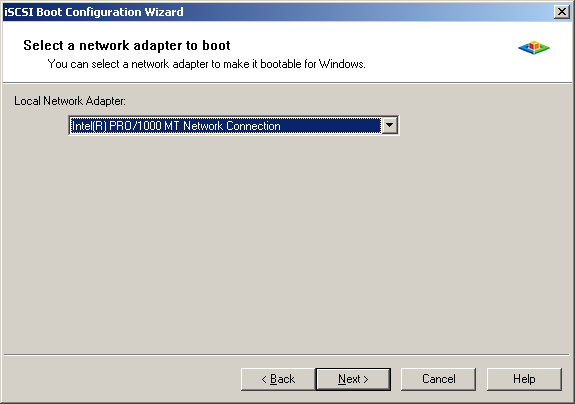

Select a network adapter to boot.

SANDeploy iSCSI SAN iSCSI Boot Target Client Configuration 2

Select a local network adapter from the list.

Press the Next button to continue.

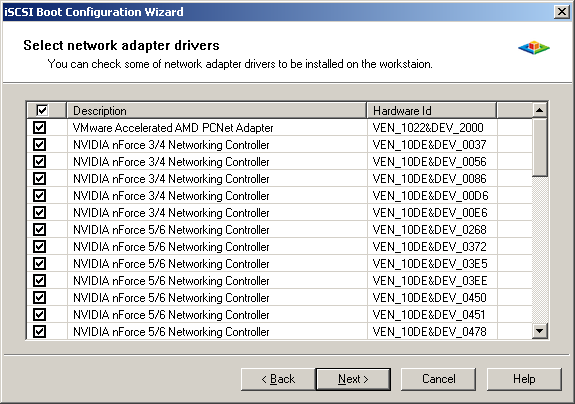

Select network adapter drivers.

SANDeploy iSCSI SAN iSCSI Boot Target Client Configuration 3

Note:
This is important, when your client machine's network adapter are not completely same (the same brand of network adapter and in the same PCI slot), you should install SANDeploy Pnp Driver for each network adapter you have (by selecting one or more than one network adapter drivers).

You can check Description to select all network adapter drivers to be installed, also you can only check some ones you want to install.

Press the Next button to continue.

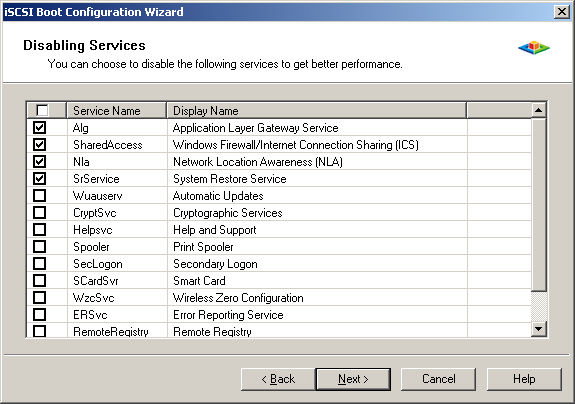

Disabling useless services.

SANDeploy iSCSI SAN iSCSI Boot Target Client Configuration 4

Disable some useless services will bring a better performance for PXE diskless boot.

Choose Service to disable.

Press the Next button to continue.

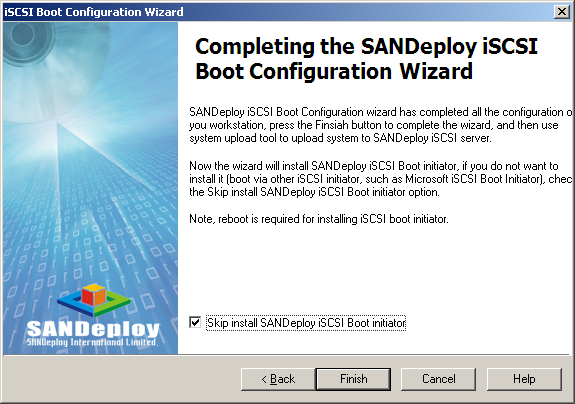

Complete iSCSI Boot Configuration Wizard.

SANDeploy iSCSI SAN iSCSI Boot Target Client Configuration 5

When you want to use Microsoft iSCSI Initiator as a iSCSI Boot Initiator, check Skip install SANDeploy iSCSI Boot initiator in the finish window.

Press the Finish button to exit, once the configuration is completed, you need to restart your computer.
