Background line 4 PXE Diskless iSCSI Boot - Client Configuration on Windows 7 Background line 5

When you want to use PXE diskless boot on Windows 7, you should use SANDeploy iSCSI Boot Configuration Wizard to configure your client computer so that it suitable for diskless boot.

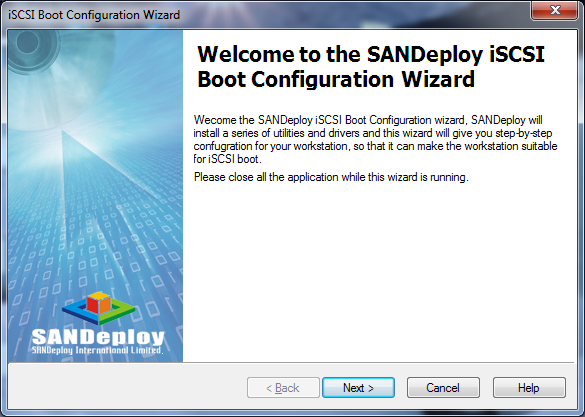

Double click on the Config Wizard icon in the SANDeploy Boot Server's client package, the iSCSI Boot Configuration Wizard shows.

SANDeploy iSCSI SAN iSCSI Boot Target Client Configuration 1

Press the Next button to continue.

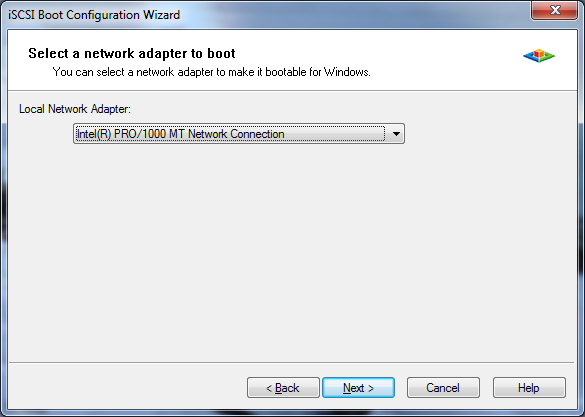

Select a network adapter to boot.

SANDeploy iSCSI SAN iSCSI Boot Target Client Configuration 2

Select a local network adapter from the list.

 Press the Next button to continue.

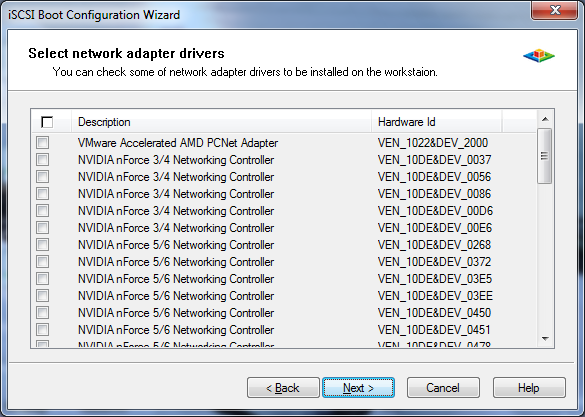

Select network adapter drivers.

SANDeploy iSCSI SAN iSCSI Boot Target Client Configuration 3

There is no need to install SANDeploy pnp drivers for multi-adapter support on Windows 7 system.

You can check Description to select all network adapter drivers to be installed, also you can only check some ones you want to install.

Press the Next button to continue.

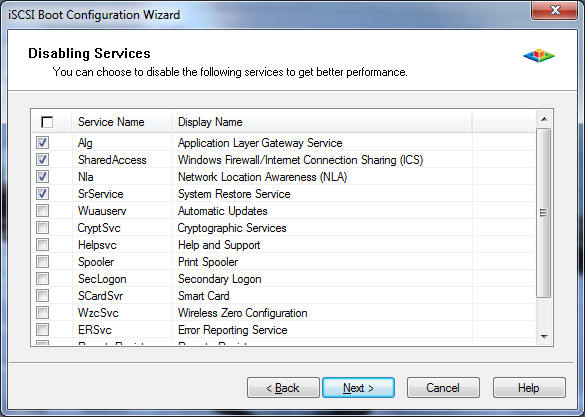

Disabling Useless Services

SANDeploy iSCSI SAN iSCSI Boot Target Client Configuration 4

Disable some useless services will bring a better performance for PXE diskless boot.

Choose Service to disable.

Press the Next button to continue.

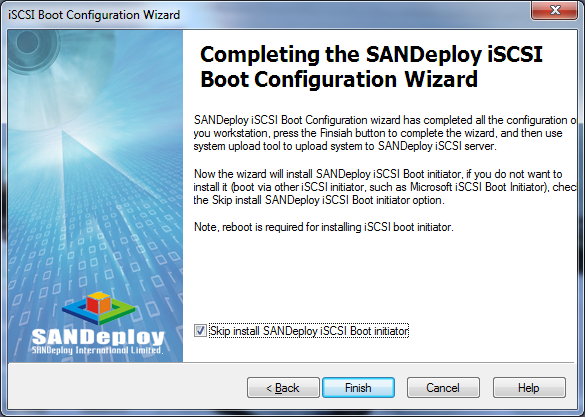

Complete iSCSI Boot Configuration Wizard.

SANDeploy iSCSI SAN iSCSI Boot Target Client Configuration 5

When you want to use Microsoft iSCI Initiator as iSCSI Boot Initiator, check Skip install SANDeploy iSCSI Boot initiator in the finish window.

Press the Finish button to exit, once the configuration is completed, you need to restart your computer.
