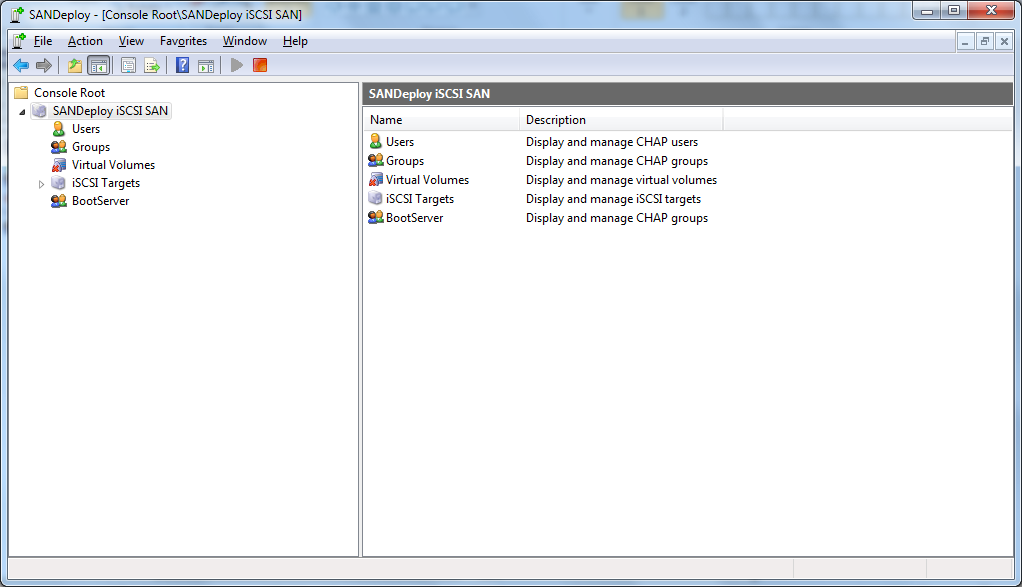

Click All Programs->SANDeploy->SANDeploy Boot Server, the SANDeploy iSCSI SAN Management Console main interface shows.

Create Virtual Volumes

Right click on the Virtual Volumes node of left tree view in the main interface.

Select Create Virtual Volume... from the pop-up menu.

The Create Volume Wizard displays.



Select Standard Image file and press Next button to continue.

Specify image file and size.

User can either select to open an existed image file or choose to create a new image file.

To create new image file, please select the location of the file where user wants to create the file, specify the capacity of the image file.

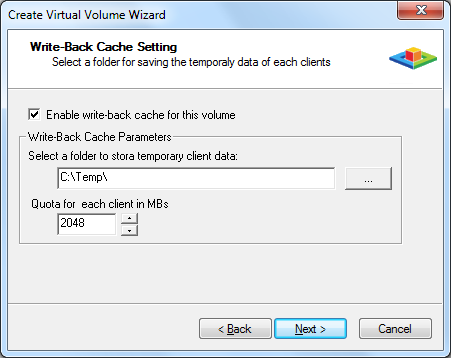

Specify Write-Back Cache Setting

Check Enable write-back cache for this volume.

Select an appropriate directory to store temporary data from clients, the directory should have enough space.

Specify quota data amount for each client.

Press the Next button to continue.

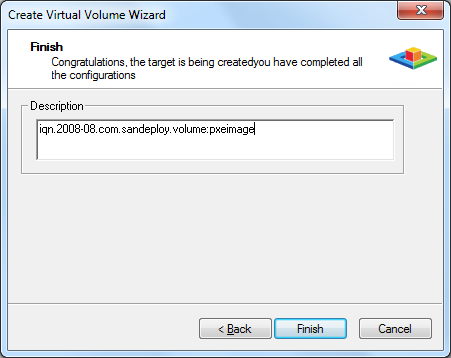

Finish the virtual volume creating.

On the finish window, you can input some descriptions of the volume. Then press Finish button to exit.

Create Target

Right click on the iSCSI Targets node of the left tree view in the main interface.
Select Create Target... from the pop-up menu. The Create iSCSI Target Wizard displays.

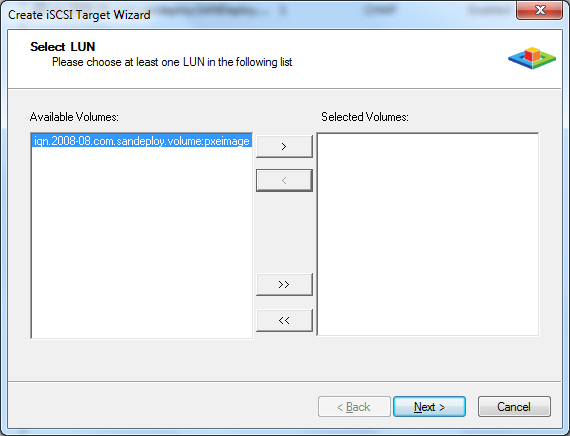

Select LUNs

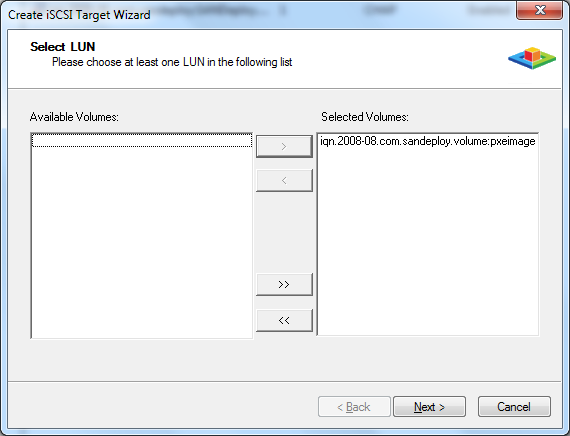

Select the volume in the Available Volumes box, and then press the > button to add it to the Selected Volumes box.

Press the Next button to continue.

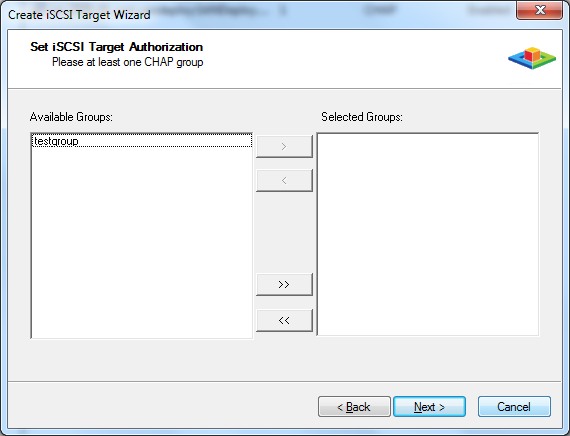

Specify CHAP user settings.

When you want to use CHAP, select some groups from Available Groups box, and then click > button to add them to Selected Administrator's Groups.

Press the Next button to continue.

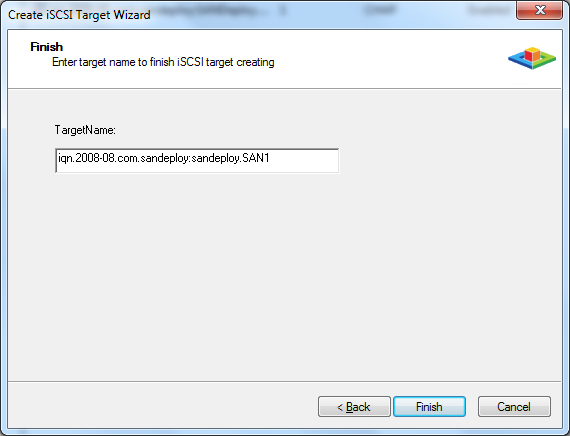

Finish iSCSI Target Creating

In the finish widow, type target name as you wish.

Press the Finish button to exit.
