Background line 4 PXE Diskless iSCSI Boot - Install Windows Server 2008 on to iSCSI SAN Background line 5

Once the SANDeploy Boot Server is ready for diskless booting, we can boot Windows from SANDeploy iSCSI Boot SAN .

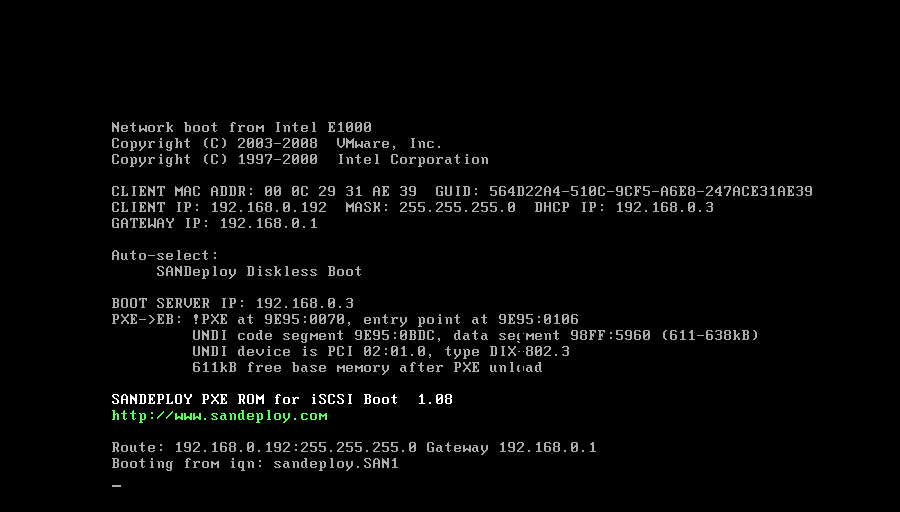

Step 1.Change bios settings, to make network boot as the first one booting device.

Step 2. Inset Windows setup DVD into DVD-ROM drive.

Step 3. Restart Computer.

When you added this client to workstation list, you will get better performance while booting, there will no DHCP phase.

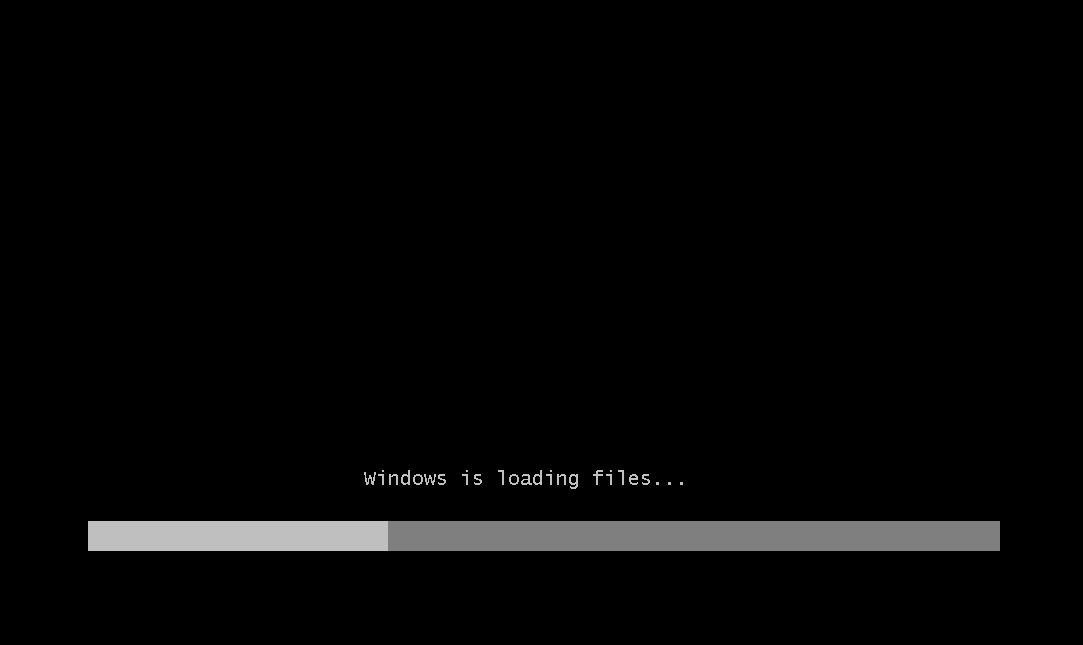

Windows Server 2008 setup is staring.


Entering Windows Server 2008 logo.

Begining of  installation of Windows Server 2008.

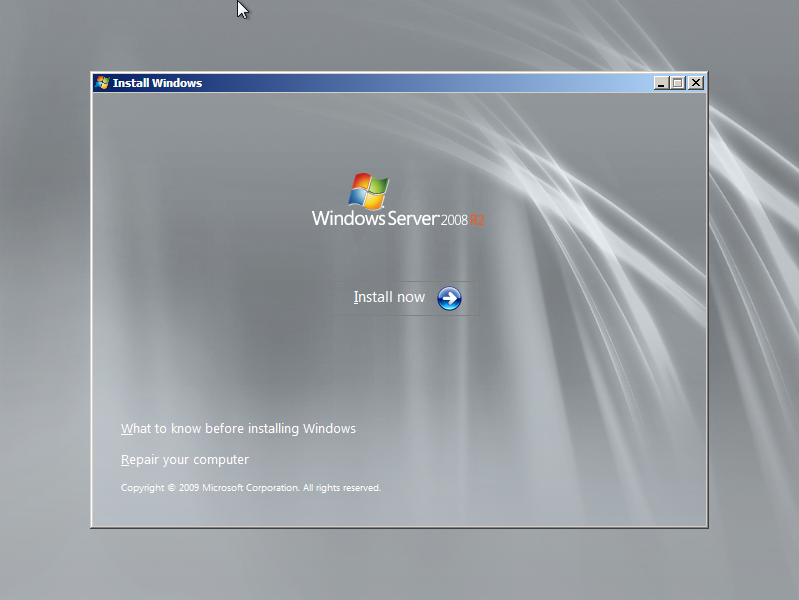

Press the Install now button to start installing windows Server 2008.

Select disk to install Windows Server 2008.

Click the Drive options (advanced) link to partition the disk as you like, otherwise press the Next button to continue.

Now Windows Server 2008 setup coping files.

Windows Server 2008 setup is being finished.

After copying all files, restart computer and boot from SANDeploy iSCSI SAN again.

Type user and computer name.

Press the OK button to continue.

Windows Server 2008 Installing finished.

Now, the Windows is ready to use, and we can see that disk used by system is SANDeploy iSCSI disk.
