Background Line 4 PXE Diskless iSCSI Boot - Log on to Target by using MS Initiator Background Line 5

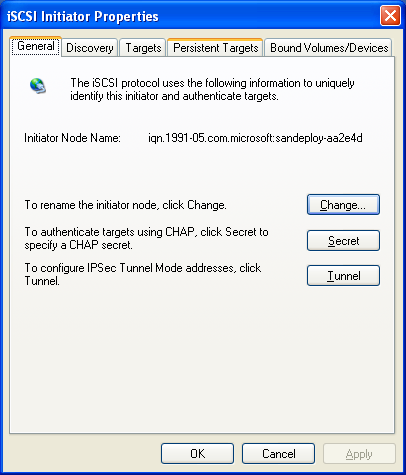

launch the Microsoft iSCSI Initiator.

SANDeploy iSCSI SAN iSCSI Boot Target Log on with MS Initiator 1

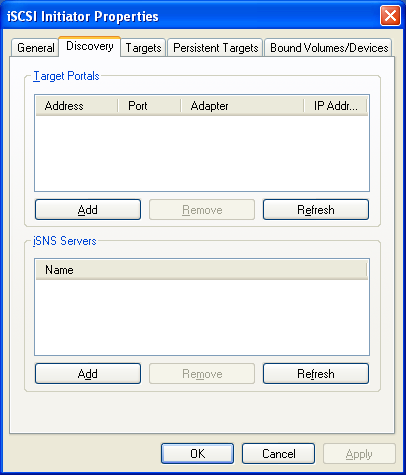

Switch to the Discovery tab.

SANDeploy iSCSI SAN iSCSI Boot Target Log on with MS Initiator 2

Press the Add button, the Add Target Portal dialog shows.

SANDeploy iSCSI SAN iSCSI Boot Target Log on with MS Initiator 3

Specifying server IP address and press the OK button to continue.

Switch to the Targets tab.

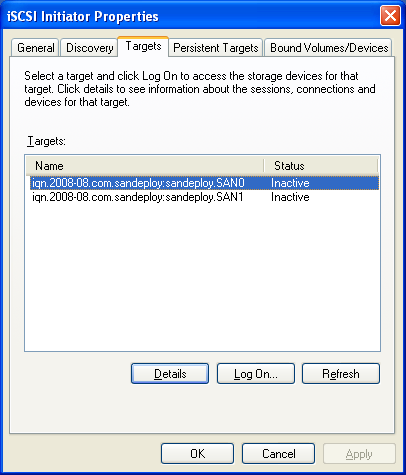

SANDeploy iSCSI SAN iSCSI Boot Target Log on with MS Initiator 4

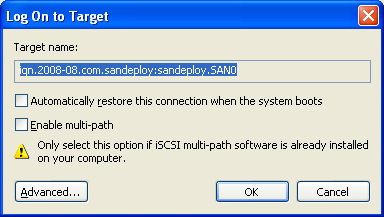

Select a target from Targets list box, and press the Log On.. button. The Log On to Target dialog shows.

SANDeploy iSCSI SAN iSCSI Boot Target Log on with MS Initiator 5

When you use CHAP, press the Advanced... button, otherwise press the Ok button to continue.

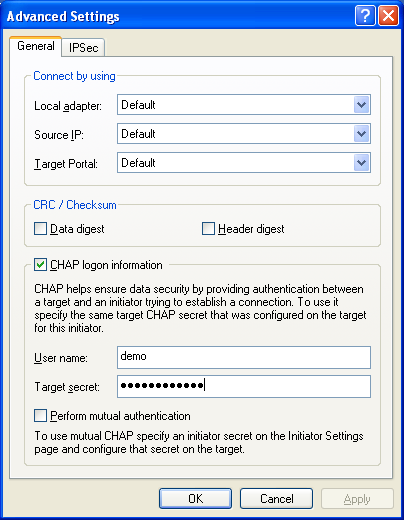

SANDeploy iSCSI SAN iSCSI Boot Target Log on with MS Initiator 5 1

Select CHAP logon information.

Type User name.

Type Target secret.

Press the OK button to continue.

Then press the OK button in the Log On to Target dialog.

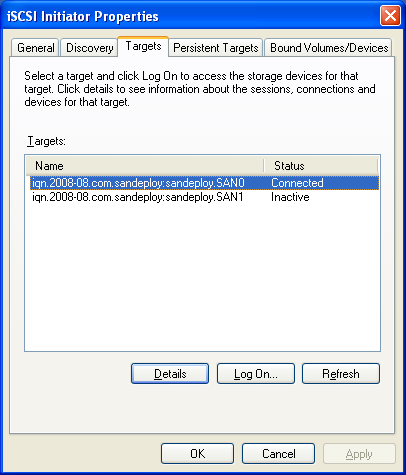

SANDeploy iSCSI SAN iSCSI Boot Target Log on with MS Initiator 6

Now, the client is connected to the target.

We have to initialize the disk before we use it. Click Start->Computer->Manage->Disk Management, the Initialize and Convert Disk Wizard shows.

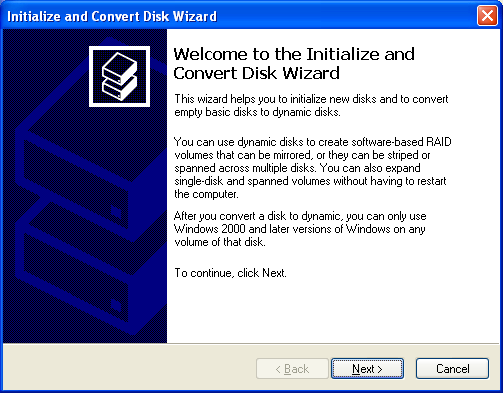

SANDeploy iSCSI SAN iSCSI Boot Target Log on with MS Initiator 7

Press Next button to continue.

Select Disks to Initialize.

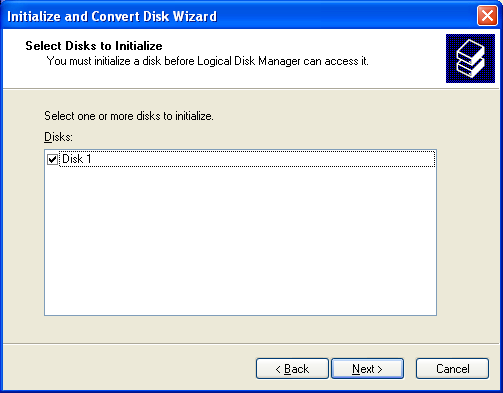

SANDeploy iSCSI SAN iSCSI Boot Target Log on with MS Initiator 8

Select Disk 1.

Press the Next button to continue.

Select Disks to Convert to Dynamic Disk.

SANDeploy iSCSI SAN iSCSI Boot Target Log on with MS Initiator 9

Do not select the iSCSI disk to convert.

Press the Next button to continue.

SANDeploy iSCSI SAN iSCSI Boot Target Log on with MS Initiator 10

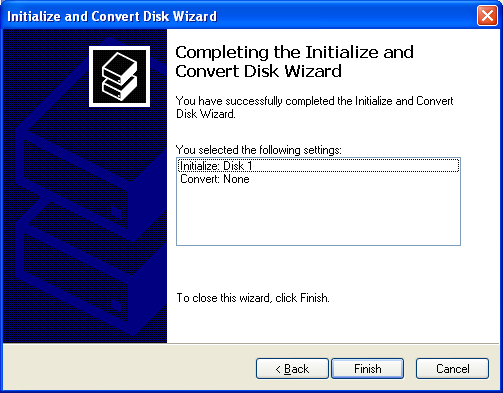

If all parameters are correct, press the Finish button to continue, otherwise, press the Back button to modify settings.

Partition the disk.

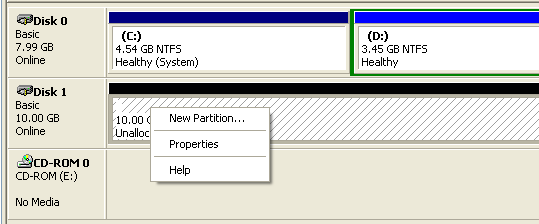

 SANDeploy iSCSI SAN iSCSI Boot Target Log on with MS Initiator 11

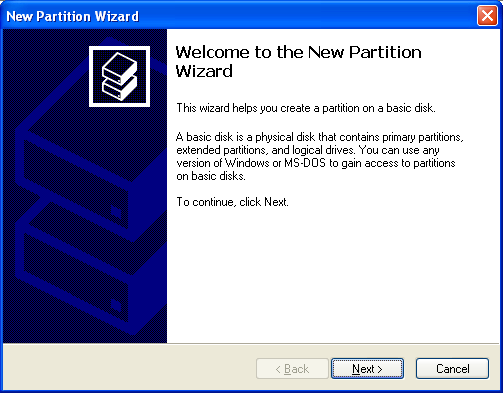

Right click on the disk and select New Partition... menu item. The New Partition Wizard shows.

SANDeploy iSCSI SAN iSCSI Boot Target Log on with MS Initiator 12

Press the Next button to continue.

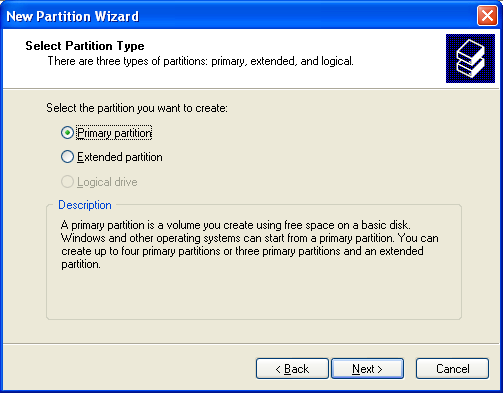

Select Partition Type.

SANDeploy iSCSI SAN iSCSI Boot Target Log on with MS Initiator 13

Choose Primary partition.

Press the Next button to continue.

Specify Partition Size.

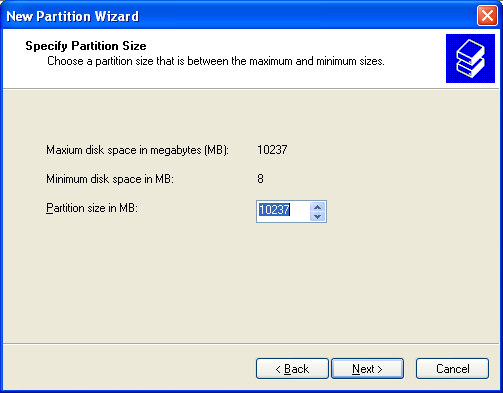

SANDeploy iSCSI SAN iSCSI Boot Target Log on with MS Initiator 14

Specify the partition size in MB.

Press the Next button to continue.

Assign Drive Letter.

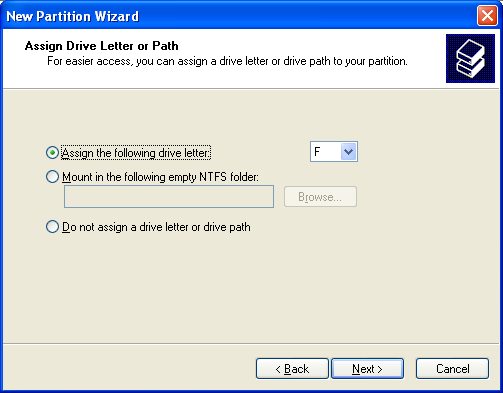

SANDeploy iSCSI SAN iSCSI Boot Target Log on with MS Initiator 15

Select a drive letter.

Press the Next button to continue.

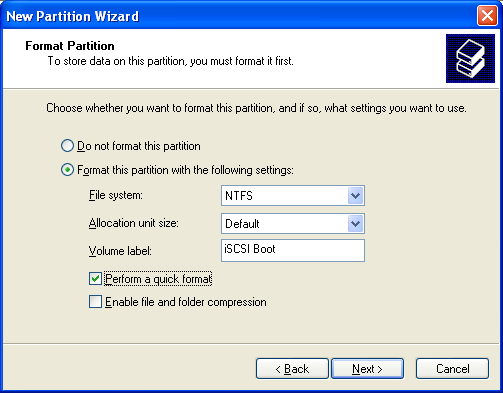

Format Partition.

SANDeploy iSCSI SAN iSCSI Boot Target Log on with MS Initiator 16

Select NTS in the File system.

Select Allocation unit size.

Specify Volume Label.

Choose Perform a quick format to save time.

Press the Next button to continue.

SANDeploy iSCSI SAN iSCSI Boot Target Log on with MS Initiator 17

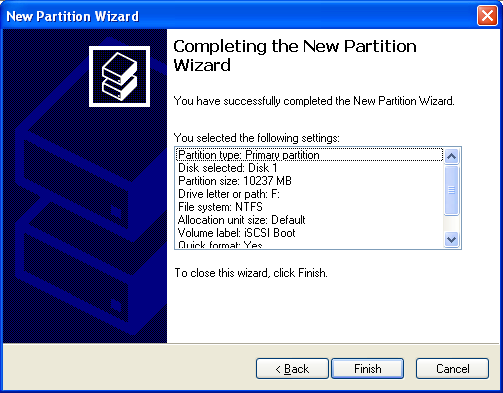

If all parameters are correct, press the Finish button to format the disk, otherwise, press the Back button to modify settings.

SANDeploy iSCSI SAN iSCSI Boot Target Log on with MS Initiator 18

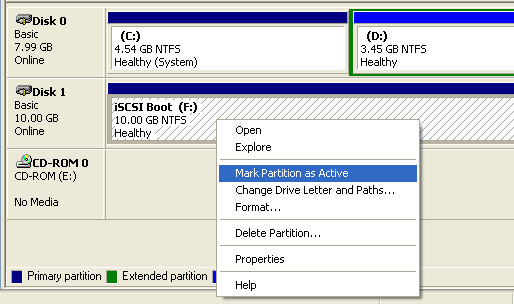

Right click on the disk, and then select the Mark Partition as Active to set the disk is active (Note, inactive disk can't  be used as boot device).
